As an original-equipment manufacturer and replacement part supplier, Dana delivers innovative sealing technologies of the highest quality under the brand name Victor Reinz®. All spare parts in the comprehensive product range meet the high standards of OEM quality.

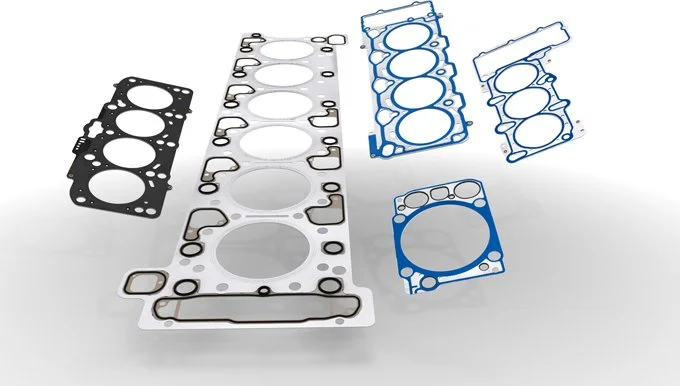

Multi-layer Steel (MLS) Cylinder-head Gaskets

  • Increasing torque and performance with decreasing consumption and emissions. The development goals in engine construction determine the requirements of modern gasket systems. As a leader in technology, an original equipment manufacturer transfers all of his expertise, experience and quality into the replacement parts business. With a broad product palette, VICTOR REINZ supplies cylinder head gaskets for all conventional passenger car and commercial vehicle engines.

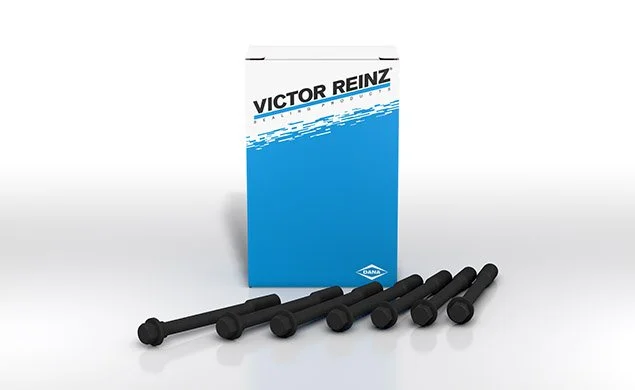

Cylinder-head Bolts

  • Cylinder-head bolts guarantee a secure and releasable joint. However, this does not mean that the same bolt can be reused for the same application. When reassembling a cylinder head, always make sure to use new head bolts. The result will be a high sealing pressure for a reliable and tight joint.

    Make sure to use head bolts exclusively from quality manufacturers. Victor Reinz cylinder-head bolts comply with all manufacturer specifications, and are matched perfectly to our head gasket sets. Of course, the torquing guidelines are always supplied – available in 12 languages.

Composite Cylinder-head Gaskets

  • The classical composite head gasket is a compressible flat gasket. It consists of a tanged metal carrier sheet, onto which the composite material is rolled on both sides, i.e. engine block and cylinder head. Metal beads (fire rings) seal the combustion chamber and protect the sensitive composite material from overheating. The material surface is impregnated to prevent the gasket swelling when it comes in contact with liquid media such as oil, water, or antifreeze.

    So-called Viton elements of elastomer materials permit a partial increase of mounting surface pressure in the vicinity of oil pressure channels.

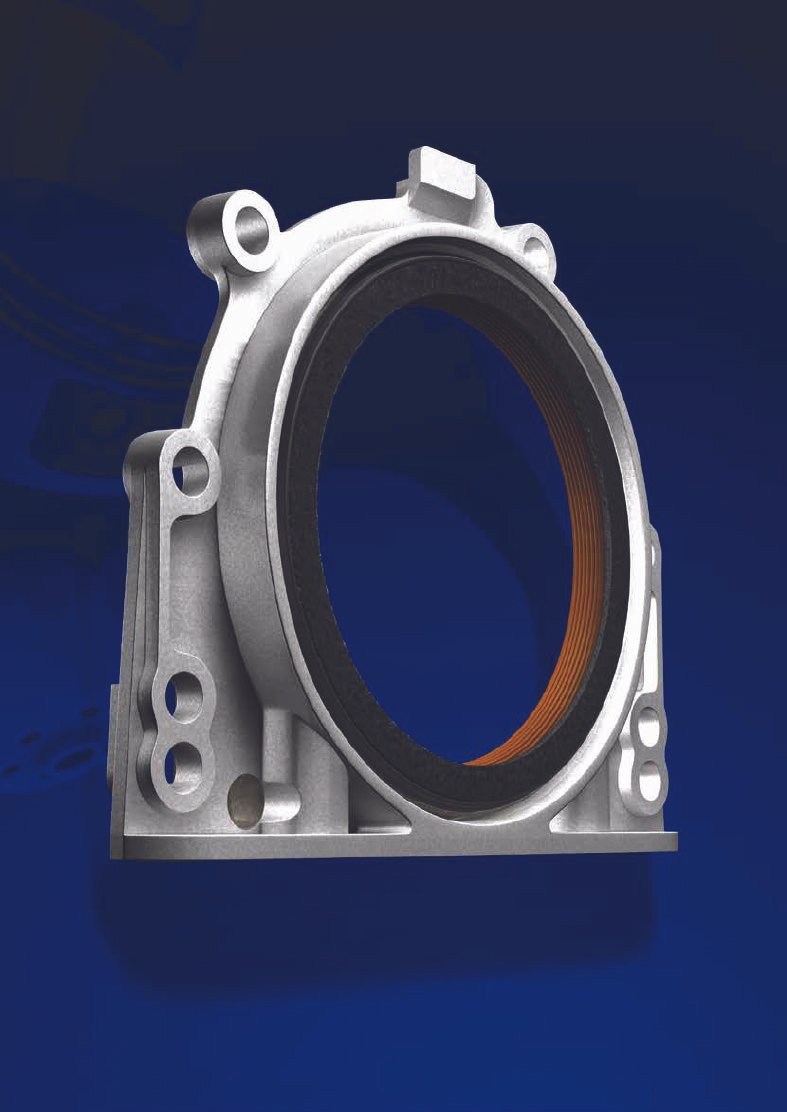

Dynamic Seals and Oil Seals

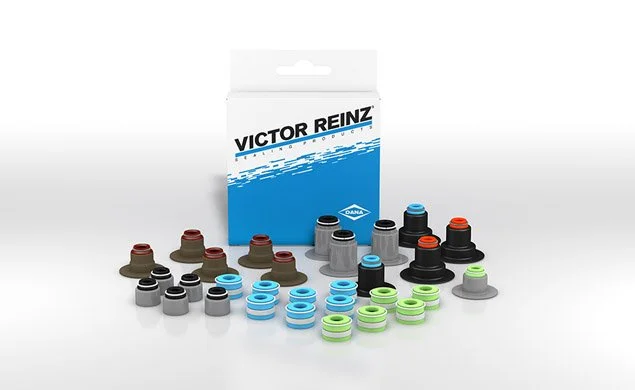

  • The most important types of dynamic seals are oil seals for use on rotating shafts, and valve stem seals for reducing the flow of oil through the cylinder-head into the combustion chamber.

    In addition to simple oil seals and integrated radial oil seals, VICTOR REINZ offers a new generation of PTFE radial oil seals.

REINZOSIL! Just seal it!

Extremely high stability at high temperatures

Solvent-free, permanently elastic, fast-curing silicon sealant for sealing flat surfaces where there is a sealing gap ≥ 0.15 mm / ≥ 0.006 in (can also be applied to assembled components).

Our Product Range

  • Cylinder-head gaskets

  • Cylinder-head bolts

  • Sealants

  • Gasket materials

  • Oil seals

  • Valve stem seals

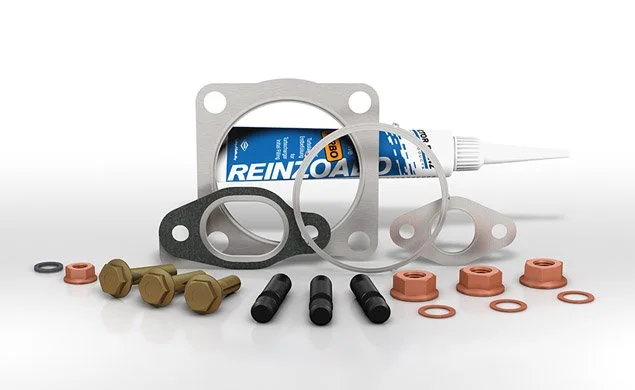

  • Turbocharger Mounting Kits

  • Valve Cover Gaskets

  • Intake manifold gasket

  • Exhaust manifold gasket
